Importance of Clinker Cooling
Rapid cooling enhances the quality and grindability of clinker. Quick cooling inhibits the formation of large mineral crystals, resulting in finer crystals that contribute to high-grade cement production. Thermal stresses from rapid cooling also introduce cracks in the clinker particles, making them easier to grind. Additionally, clinker coolers recycle heat to preheat secondary air, essential for combustion. By transferring heat from the clinker to this combustion air, the cooler improves fuel combustion efficiency, reducing energy consumption and fuel costs. Furthermore, clinker must be cooled to an appropriate temperature (between 50-300°C) for further processing, such as grinding and storage, ensuring it can be effectively combined with gypsum and other materials for market preparation.

Types of Clinker Coolers
Clinker coolers come in various types, including rotary coolers, grate coolers, and vertical clinker coolers. Among these, rotary and grate coolers are the most commonly used in cement plants.

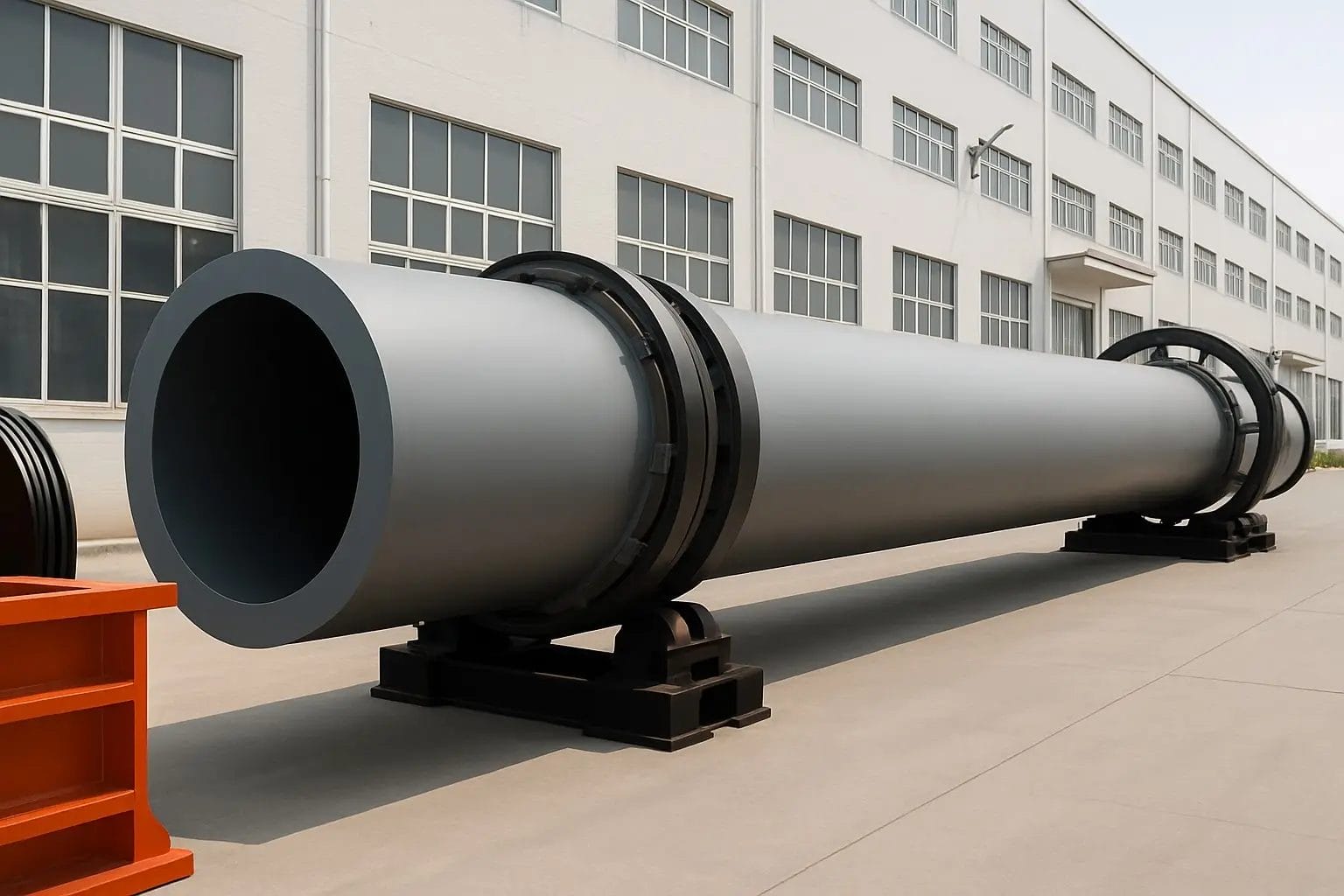

Rotary Cooler
The rotary cooler is one of the earliest and simplest cooling systems used in cement production. It resembles a cement rotary kiln and is equipped with refractory lining and material lifting devices. High-temperature clinker enters one end of the rotating cylindrical cooler, while cold air enters the opposite end, promoting heat exchange as it progresses through the cooler.

Specifications:
The rotary cooler boasts a production capacity of 2.5-3.5t/m³, an output temperature range of 150-300°C, and secondary air temperatures between 400-750°C. It achieves thermal efficiency rates of 55-75% for dry processes and around 78% for wet processes.

Pros:
The rotary cooler features a simple structure and steady operation with high thermal efficiency. It emits no waste gas or dust, eliminating the need for additional dust collectors and is suitable for various materials, including cement clinker, dolomite, and limestone. It is also cost-effective, particularly for small to medium-sized rotary kiln systems.

Cons:
However, the rotary cooler has higher discharge temperatures and increased heat loss. Its limited air volume may impede the rapid quenching of high-temperature clinker.

Conclusion
A clinker cooler not only improves cement quality and process efficiency but also contributes to reduced energy consumption. Proper selection and operation of the cooler can significantly impact the overall performance of the cement production line. With solutions from providers like DMPCR, clinker coolers can be optimized for any production scale and requirement.
